Firestone W01-358-6951 Contitech FD200-25 Double Convoluted Type Air Suspension Spring Airbag

Firestone W01-358-6951 Contitech FD200-25 Double Convoluted Type Air Suspension Spring Airbag
Firestone W01-358-6951 Contitech FD200-25 Double Convoluted Type Air Suspension Spring Airbag Firestone W01-358-6951 Contitech FD200-25 Double Convoluted Type Air Suspension Spring Airbag Firestone W01-358-6951 Contitech FD200-25 Double Convoluted Type Air Suspension Spring Airbag

Image Grand :  Firestone W01-358-6951 Contitech FD200-25 Double Convoluted Type Air Suspension Spring Airbag

Détails sur le produit:
Lieu d'origine: Chine
Nom de marque: YITAO
Certification: IATF16949
Numéro de modèle: 2B 5290/02B 20*2
Conditions de paiement et expédition:
Quantité de commande min: 50 pièces
Prix: Negotiable in person
Détails d'emballage: Carton
Délai de livraison: 1 ~ 30 jours
Conditions de paiement: T/T
Capacité d'approvisionnement: 5000pièces/mois
Contact

Firestone W01-358-6951 Contitech FD200-25 Double Convoluted Type Air Suspension Spring Airbag

description de
Numéro OE: W01-358-6951, FD200-25 Numéro YITAO: 2B 5290
Délai d'expédition: 3-10 jours Garantie: 12 mois
Taper: ressort pneumatique, ressort de suspension Matériau principal: Ruban+Métal
emballage: Emballage neutre ou emballage personnalisé
Mettre en évidence:

Firestone air suspension spring

,

Contitech FD200-25 airbag

,

double convoluted air ride spring

Firestone W01-358-6951 Contitech FD200-25 Double Convoluted Type Air Suspension Spring Airbag
Product Identification

Firestone W01-358-6951 Contitech FD200-25 Double Convoluted Type Air Suspension Spring Airbag

OE Manufacturer Numbers
  • W01-358-6951
  • FD200-25
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-6951 W013586951 / W01-358-6951 / W01 358 6951
Contitech FD200-25 FD20025 / FD200-25 / FD200 25
Technical Specifications
Specifications Parameters
Outer diameter φ224
Weight 14.134kg/4PCS
Net weight 3.432kg
Package Dimensions 25*25*25.5cm
Natural height 240mm
Maximum height 75mm
Minimum height 315mm
Top Plate Width 160mm
Piston Width 160mm

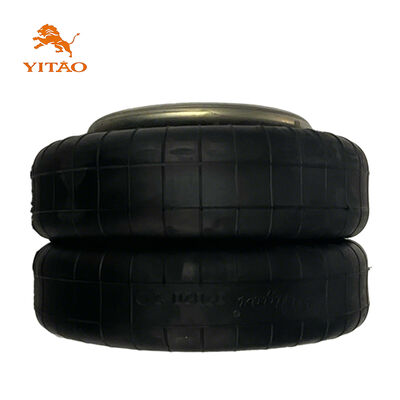

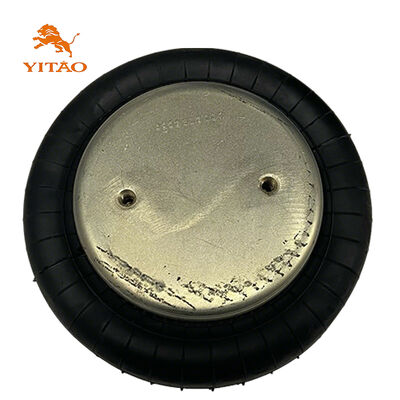

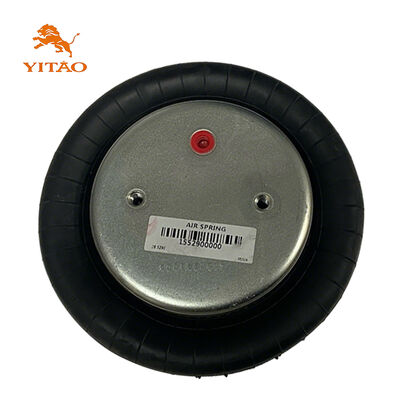

Product Drawings & Images
Firestone W01-358-6951 Contitech FD200-25 Double Convoluted Type Air Suspension Spring Airbag 0
Firestone W01-358-6951 Contitech FD200-25 Double Convoluted Type Air Suspension Spring Airbag 1
Factory Overview
Firestone W01-358-6951 Contitech FD200-25 Double Convoluted Type Air Suspension Spring Airbag 2
Quality Control Inspection
Firestone W01-358-6951 Contitech FD200-25 Double Convoluted Type Air Suspension Spring Airbag 3
Manufacturing Equipment
Firestone W01-358-6951 Contitech FD200-25 Double Convoluted Type Air Suspension Spring Airbag 4
R&D Center
Firestone W01-358-6951 Contitech FD200-25 Double Convoluted Type Air Suspension Spring Airbag 5
Assembly and Forming
Firestone W01-358-6951 Contitech FD200-25 Double Convoluted Type Air Suspension Spring Airbag 6
Vulcanization Shop
Images shown are for reference only. Actual product may vary slightly.
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions
Frequently Asked Questions
IS THE SAMPLE AVAILABLE?
Yes, we typically send samples via TNT, DHL, FEDEX or UPS. Delivery takes approximately 3 days. Customers are responsible for sample costs and airmail freight. Sample costs will be refunded after order placement.
WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the shipment date. For product failures within the warranty period, customers are responsible for replacement part costs.
CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM services are welcomed.
I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. We provide product sourcing services for our customers. Please provide detailed information about the items you require.
