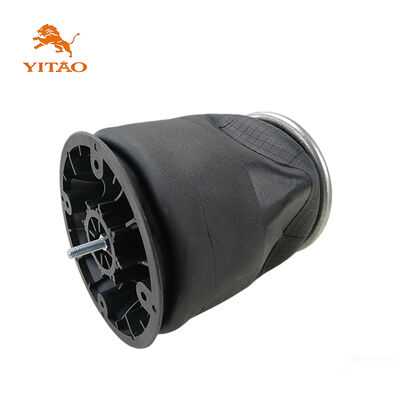

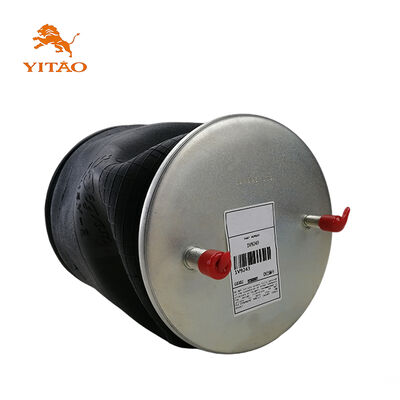

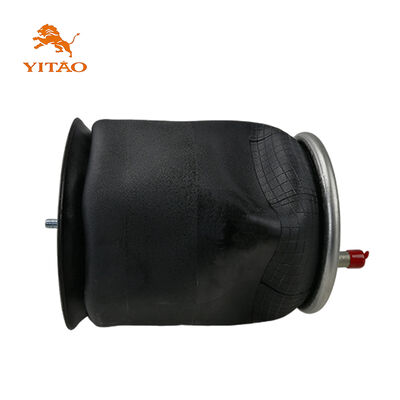

Bus Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-9243, Contitech 910-19P384

Bus Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-9243, Contitech 910-19P384
Bus Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-9243, Contitech 910-19P384 Bus Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-9243, Contitech 910-19P384 Bus Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-9243, Contitech 910-19P384 Bus Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-9243, Contitech 910-19P384

Image Grand :  Bus Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-9243, Contitech 910-19P384

Détails sur le produit:
Lieu d'origine: Chine
Nom de marque: YITAO
Certification: IATF16949
Numéro de modèle: 1V9243/0V15M-9
Conditions de paiement et expédition:
Quantité de commande min: 50 pièces
Prix: Negotiable in person
Détails d'emballage: CARTON
Délai de livraison: 1 ~ 30 jours
Conditions de paiement: T/T
Capacité d'approvisionnement: 5000pièces/mois
Contact

Bus Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-9243, Contitech 910-19P384

description de
Numéro OE: W01-358-9243,1T15M-9,910-19P384,1R12-480,566243066,900557112,8384,6364,AS-0061 Numéro YITAO: 1 V 9243
Taper: Ressort pneumatique de camion Condition: Tout neuf
Garantie: 12 mois Délai d'expédition typique: 3-10 jours
Configuration d'étanchéité: Plaque de recouvrement à sertir + plaque d'étanchéité vulcanisée Matériel: Caoutchouc naturel
Matériau des pistons: Oui Emballage: Emballage neutre ou emballage personnalisé
Mettre en évidence:

Bus air suspension rubber spring

,

Firestone W01 air spring replacement

,

Contitech 910 truck air spring

Bus Air Suspension Rubber Air Spring OE Replacement

Manufactured to specifications matching Firestone W01-358-9243 and Contitech 910-19P384, this air spring fully replaces the original equipment and provides a comfortable and stable ride.

Compatibility & Original Equipment
  • Compatible Numbers: 1DK23L-9243, W01-358-9243, 1T15M-9, AS9243, 1R12-480, 566243066, AS-0061, 8384, 6364, 1R12-480, AS-8384
  • Original Equipment: 90557112, AS-0061, 8384/6364
Cross References
Brand Reference Numbers Numbering Discrepancy
FirestoneW01-358-9243W013589243 / W01-358-9243 / W01 358 9243
Firestone1T15M-91T15M9 / 1T15M-9 / 1T15M 9
Contitech910-19P38491019P384 / 910-19P384 / 910 19P384
Goodyear1R12-4801R12480 / 1R12-480 / 1R12 480
Goodyear566243066566243066
Holland(Neway)900557112900557112
Triangle83848384
Triangle63646364
Watson&ChalinAS-0061AS0061 / AS-0061 / AS 0061
Technical Specifications
Specifications Parameters
Outer diameterφ255
Weight8.035 kg
Package Dimensions27*27*45cm
Natural height603mm
Maximum height583mm
Minimum height189mm
Extended Height597mm
Compressed Height188mm
Top Plate Width231mm
Piston Width260mm
Product Drawings & Images
Bus Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-9243, Contitech 910-19P384 0
Images shown are for reference only. Actual product may vary slightly.
Factory Showcase
Bus Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-9243, Contitech 910-19P384 1
Factory Overlook
Bus Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-9243, Contitech 910-19P384 2
Quality Control Inspection
Bus Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-9243, Contitech 910-19P384 3
Manufacturing Equipment
Bus Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-9243, Contitech 910-19P384 4
R&D Center
Bus Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-9243, Contitech 910-19P384 5
Assembly and Forming
Bus Air Suspension Rubber Air Spring OE Replacement Firestone W01-358-9243, Contitech 910-19P384 6
Vulcanization Shop
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions
Frequently Asked Questions

IS THE SAMPLE AVAILABLE?
Yes, we typically send samples via TNT, DHL, FEDEX or UPS. Delivery takes approximately 3 days. Customers are responsible for sample costs and airmail freight. Sample costs will be refunded after order placement.

WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the shipment date. For product failures within the warranty period, customers are responsible for replacement part costs.

CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM services are welcomed.

I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. We provide product sourcing services for our customers. Please provide detailed information about the items you require.
