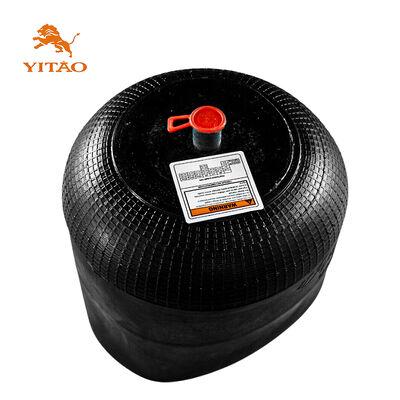

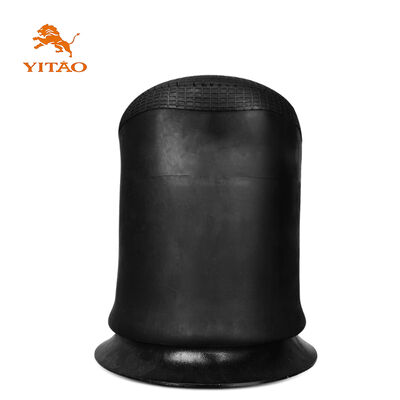

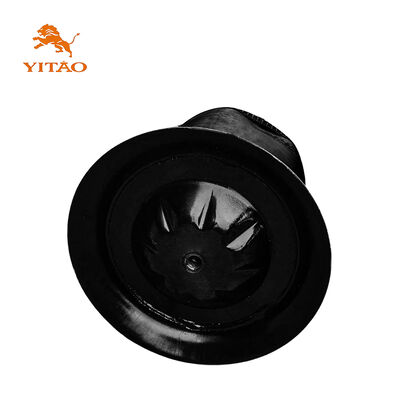

High Stability Triple Convoluted Air Suspension for Semi-Trailer OE Replacement for Contitech 4757NP01, Airtech 34757-01K, BENZ A9423200117

High Stability Triple Convoluted Air Suspension for Semi-Trailer OE Replacement for Contitech 4757NP01, Airtech 34757-01K, BENZ A9423200117
High Stability Triple Convoluted Air Suspension for Semi-Trailer OE Replacement for Contitech 4757NP01, Airtech 34757-01K, BENZ A9423200117 High Stability Triple Convoluted Air Suspension for Semi-Trailer OE Replacement for Contitech 4757NP01, Airtech 34757-01K, BENZ A9423200117 High Stability Triple Convoluted Air Suspension for Semi-Trailer OE Replacement for Contitech 4757NP01, Airtech 34757-01K, BENZ A9423200117

Image Grand :  High Stability Triple Convoluted Air Suspension for Semi-Trailer OE Replacement for Contitech 4757NP01, Airtech 34757-01K, BENZ A9423200117

Détails sur le produit:
Lieu d'origine: Chine
Nom de marque: YITAO
Certification: IATF16949
Numéro de modèle: 1V5868/1V5868
Conditions de paiement et expédition:
Quantité de commande min: 50 pièces
Prix: Negotiable in person
Détails d'emballage: CARTON
Délai de livraison: 1 ~ 30 jours
Conditions de paiement: T/T
Capacité d'approvisionnement: 5000pièces/mois
Contact

High Stability Triple Convoluted Air Suspension for Semi-Trailer OE Replacement for Contitech 4757NP01, Airtech 34757-01K, BENZ A9423200117

description de
Numéro OE: 4757NP01,9579,S13T01,1VSC300-26,15962,20.4757.1CM,04.060.6006.960,084.11 1-11A,084.111-71A,A94232001 Numéro YITAO: 1 V 5868
Taper: Ressort pneumatique de camion application: Pour suspension pneumatique de camion
Condition: Tout neuf Garantie: 12 mois
Délai d'expédition typique: 3-10 jours Configuration d'étanchéité: Plaque de recouvrement vulcanisée + bride
matériel: Caoutchouc naturel Matériau des pistons: Fer
Emballage: Emballage neutre ou emballage personnalisé
Mettre en évidence:

semi-trailer air suspension replacement

,

triple convoluted truck air spring

,

OE replacement air spring with warranty

High Stability Triple Convoluted Air Suspension for Semi-Trailer
OE Replacement for Contitech 4757NP01, Airtech 34757-01K, BENZ A9423200117. Manufactured to specifications matching original equipment, this air spring provides your truck with a comfortable and stable ride.
Cross References
Brand Reference Numbers Numbering Discrepancy
Contitech4757NP01:4757NP01
Goodyear9579:9579
Dunlop FRS13T01:S13T01
CF Gomma1VSC300-261VSC30026 / 1VSC300-26 / 1VSC300 26
Granning15962:15962
Airfren20.4757.1CM:20.4757.1CM
Templin04.060.6006.960:04.060.6006.960
Peautomotive084.111-11A084.11111A / 084.111-11A / 084.111 11A
Peautomotive084.111-71A084.11171A / 084.111-71A / 084.111 71A
BENZA9423200117:A9423200117
Airtech34757-01K3475701K / 34757-01K / 34757 01K
Airtech132982:132982
DT4.80374:4.80374
Pirelli1VSC300-261VSC30026 / 1VSC300-26 / 1VSC300 26
MeritorMLF7164:MLF7164
Technical Specifications
Specifications Parameters
Outer diameterφ260
Weight8 kg
Package Dimensions28.5*28*36cm
Natural height600mm
Maximum height568mm
Minimum height190mm
Extended HeightTo be updated
Compressed HeightTo be updated
Top Plate Width155mm
Piston Width280mm
Product Drawings & Images
High Stability Triple Convoluted Air Suspension for Semi-Trailer OE Replacement for Contitech 4757NP01, Airtech 34757-01K, BENZ A9423200117 0
Images shown are for reference only. Actual product may vary slightly.
Factory Showcase
High Stability Triple Convoluted Air Suspension for Semi-Trailer OE Replacement for Contitech 4757NP01, Airtech 34757-01K, BENZ A9423200117 1
Factory production line overview
High Stability Triple Convoluted Air Suspension for Semi-Trailer OE Replacement for Contitech 4757NP01, Airtech 34757-01K, BENZ A9423200117 2
Quality control inspection
High Stability Triple Convoluted Air Suspension for Semi-Trailer OE Replacement for Contitech 4757NP01, Airtech 34757-01K, BENZ A9423200117 3
Manufacturing equipment
High Stability Triple Convoluted Air Suspension for Semi-Trailer OE Replacement for Contitech 4757NP01, Airtech 34757-01K, BENZ A9423200117 4
R&D Center
High Stability Triple Convoluted Air Suspension for Semi-Trailer OE Replacement for Contitech 4757NP01, Airtech 34757-01K, BENZ A9423200117 5
Assembly and forming
High Stability Triple Convoluted Air Suspension for Semi-Trailer OE Replacement for Contitech 4757NP01, Airtech 34757-01K, BENZ A9423200117 6
Vulcanization shop
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions
Frequently Asked Questions
IS THE SAMPLE AVAILABLE?
Yes, we typically send samples via TNT, DHL, FEDEX or UPS. Delivery takes approximately 3 days. Customers are responsible for sample costs and airmail freight. Sample costs will be refunded after order placement.
WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the shipment date. For product failures within the warranty period, customers are responsible for replacement part costs.
CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM services are welcomed.
I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. We provide product sourcing services for our customers. Please provide detailed information about the items you require.
Contact Us
Feel free to reach out. We'll get back to you within 24 hours (or sooner if we can!) and are excited to work with you.
