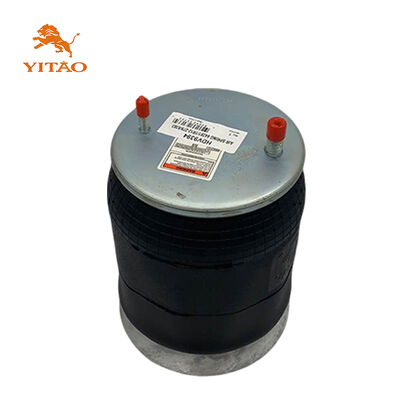

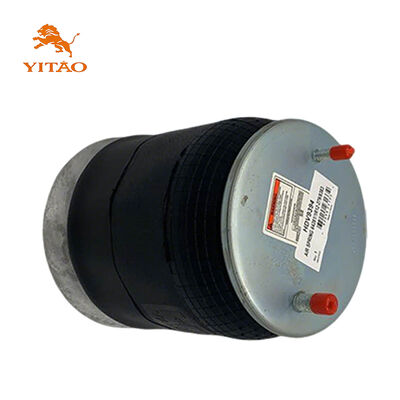

Heavy Duty Double Convoluted Air Spring for truck air ride suspension kits OE Replacement | Firestone W01-358-9394 Contitech 910-19P Goodyear 1R12-142

Heavy Duty Double Convoluted Air Spring for truck air ride suspension kits OE Replacement | Firestone W01-358-9394 Contitech 910-19P Goodyear 1R12-142
Heavy Duty Double Convoluted Air Spring for truck air ride suspension kits OE Replacement | Firestone W01-358-9394 Contitech 910-19P Goodyear 1R12-142 Heavy Duty Double Convoluted Air Spring for truck air ride suspension kits OE Replacement | Firestone W01-358-9394 Contitech 910-19P Goodyear 1R12-142 Heavy Duty Double Convoluted Air Spring for truck air ride suspension kits OE Replacement | Firestone W01-358-9394 Contitech 910-19P Goodyear 1R12-142 Heavy Duty Double Convoluted Air Spring for truck air ride suspension kits OE Replacement | Firestone W01-358-9394 Contitech 910-19P Goodyear 1R12-142

Image Grand :  Heavy Duty Double Convoluted Air Spring for truck air ride suspension kits OE Replacement | Firestone W01-358-9394 Contitech 910-19P Goodyear 1R12-142

Détails sur le produit:
Lieu d'origine: Chine
Nom de marque: YITAO
Certification: IATF16949
Numéro de modèle: 1V9394/1V9394
Conditions de paiement et expédition:
Quantité de commande min: 50 pièces
Prix: Negotiable in person
Détails d'emballage: CARTON
Délai de livraison: 1 ~ 30 jours
Conditions de paiement: T/T
Capacité d'approvisionnement: 5000pièces/mois
Contact

Heavy Duty Double Convoluted Air Spring for truck air ride suspension kits OE Replacement | Firestone W01-358-9394 Contitech 910-19P Goodyear 1R12-142

description de
Numéro OE: W01-358-9394,1T15,910-19P/A358,1R12-142,261,1R12-278,279,281,56624306 6,UCD-9393-2,UDC-9393-3,UCD-93 Numéro YITAO: 1V 9394
Taper: Ressort pneumatique de camion application: Pour suspension pneumatique de camion
Condition: Tout neuf Garantie: 12 mois
Délai d'expédition typique: 3-10 jours Configuration d'étanchéité: Plaque de recouvrement à sertir + plaque d'étanchéité vulcanisée
matériel: Caoutchouc naturel Matériau des pistons: Fer
Emballage: Emballage neutre ou emballage personnalisé
Mettre en évidence:

Heavy Duty truck air spring

,

Double Convoluted air ride suspension

,

OE Replacement truck air spring

Heavy Duty Double Convoluted Air Spring
Goodyear 1R14-113 High-Capacity Air Spring Super-Cushion Air Spring for Truck and Trailer Applications
Product Overview
Manufactured to specifications matching Firestone W01-358-9394, Contitech 910-19P and Goodyear 1R12-142, this air spring fully replaces the original equipment and provides stable suspension and reliable performance.
Cross References
Brand/Item Reference Numbers Numbering Discrepancy
Firestone W01-358-9394 W013589394 / W01-358-9394 / W01 358 9394
Firestone 1T15 :1T15
Contitech 910-19P/A358 91019P/A358 / 910-19P/A358 / 910 19P/A358
Goodyear 1R12-142 1R12142 / 1R12-142 / 1R12 142
Goodyear 261 :261
Goodyear 1R12-278 1R12278 / 1R12-278 / 1R12 278
Goodyear 279 :279
Goodyear 281 :281
Goodyear 566243066 :566243066
Fruehauf UCD-9393-2 UCD93932 / UCD-9393-2 / UCD 9393 2
Fruehauf UCD-9393-3 UCD93933 / UCD-9393-3 / UCD 9393 3
Fruehauf UCD-9393-4 UCD93934 / UCD-9393-4 / UCD 9393 4
Suspensions Inc 200041 :200041
Suspersedes 9241 :9241
Triangle 8383 :8383
Triangle 6364 :6364
Note: if bolt is removed, this part can replace W01-358-9130 (W013589130 / W01-358-9130 / W01 358 9130)
Technical Specifications
Specifications Parameters
Outer diameter φ255
Weight 9.44 kg
Package Dimensions 27*27*36cm
Natural height 645mm
Maximum height 625mm
Minimum height 221mm
Extended Height 650mm
Compressed Height 234mm
Top Plate Width 231mm
Piston Width 260mm
Product Drawings & Images
Heavy Duty Double Convoluted Air Spring for truck air ride suspension kits OE Replacement | Firestone W01-358-9394 Contitech 910-19P Goodyear 1R12-142 0
Images shown are for reference only. Actual product may vary slightly.
Factory Showcase
Heavy Duty Double Convoluted Air Spring for truck air ride suspension kits OE Replacement | Firestone W01-358-9394 Contitech 910-19P Goodyear 1R12-142 1
Factory production line overview showing manufacturing process
Heavy Duty Double Convoluted Air Spring for truck air ride suspension kits OE Replacement | Firestone W01-358-9394 Contitech 910-19P Goodyear 1R12-142 2
Quality control inspection process
Heavy Duty Double Convoluted Air Spring for truck air ride suspension kits OE Replacement | Firestone W01-358-9394 Contitech 910-19P Goodyear 1R12-142 3
Manufacturing equipment and machinery
Heavy Duty Double Convoluted Air Spring for truck air ride suspension kits OE Replacement | Firestone W01-358-9394 Contitech 910-19P Goodyear 1R12-142 4
Assembly line operations
R&D Center
Heavy Duty Double Convoluted Air Spring for truck air ride suspension kits OE Replacement | Firestone W01-358-9394 Contitech 910-19P Goodyear 1R12-142 5
Finished product storage area with organized inventory
Manufacturing Equipment
Heavy Duty Double Convoluted Air Spring for truck air ride suspension kits OE Replacement | Firestone W01-358-9394 Contitech 910-19P Goodyear 1R12-142 6
Packaging and shipping preparation
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions
Frequently Asked Questions
IS THE SAMPLE AVAILABLE?
Yes, we typically send samples via TNT, DHL, FEDEX or UPS. Delivery takes approximately 3 days. Customers are responsible for sample costs and airmail freight. Sample costs will be refunded after order placement.
WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the shipment date. For product failures within the warranty period, customers are responsible for replacement part costs.
CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM services are welcomed.
I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. We provide product sourcing services for our customers. Please provide detailed information about the items you require.
